Description
The ultimate iPhone accessory
The iPhone is a technological masterpiece, with its amazing Retina monitor and cutting-edge, Wi-Fi 6E and 5G connectivity. But how do you connect your pro camera? With a Ninja Phone! Attach the Ninja Phone to your iPhone 15 Pro or Pro Max, plug in an HDMI-equipped camera, and you’ve got the best display on the planet with fast, low-latency connectivity.

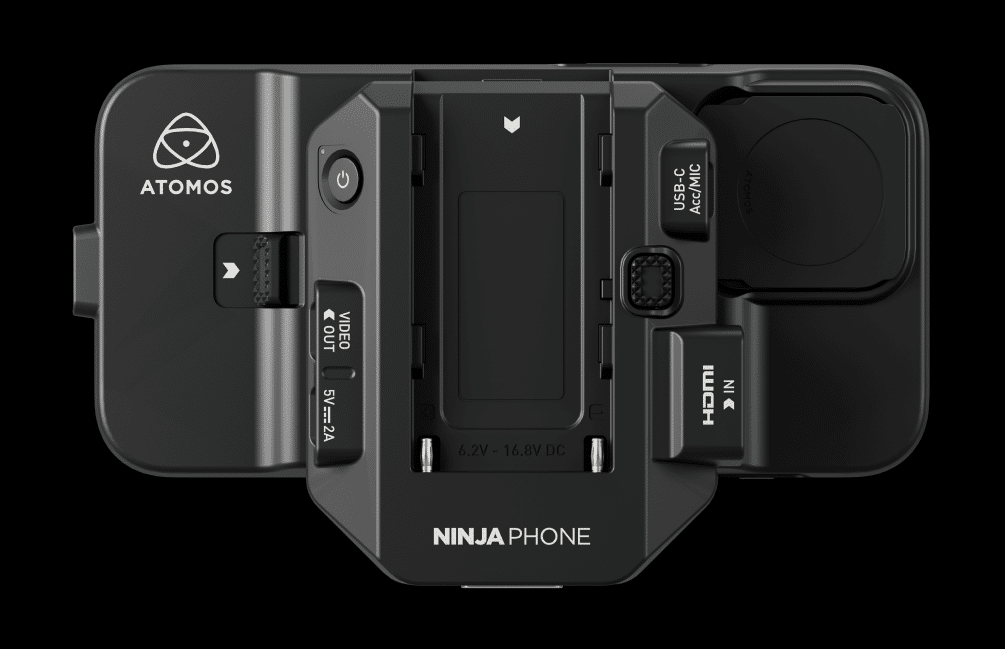

Ninja Phone is cleverly designed in two parts: the Ninja Phone video co-processor and the Atomos iPhone Case. The case provides a secure mount to attach the Ninja Phone to your iPhone 15 Pro or Pro Max, and enables the locking USB-C connector. Having a separate case also means that if future iPhones change in physical specification, you can just change the case and keep using the Ninja Phone.
Record 10-bit ProRes from any HDMI camera
Ninja Phone is the only way to connect professional cameras with HDMI to an iPhone 15 Pro or Pro Max and record directly into ProRes – the absolute standard for professional video production and post production.
Stream via 5G or Wi-Fi 6E to social platforms
You won’t find a more compact set-up for streaming professional-grade video directly from your camera. Weighing only 335 grams, including the iPhone 15 Pro Max, it’s packed with the latest technology, including pristine 10-bit, H.265 encoding, Wi-Fi 6E, and low-latency 5G for the ultimate in mobile live streaming.
Dual record 10-bit ProRes and H.265 for Camera to Cloud
Ninja Phone is your gateway to hyper-efficient cloud production workflows. You can choose the way you work: record ProRes master files and H.265 proxies for full, cinematic quality, or encode 10-bit H.265 only from the Ninja Phone for the simplest, fastest workflows that are production quality and perfect for sending direct to social channels. The choice of 10-bit ProRes and/or H.265 is yours.

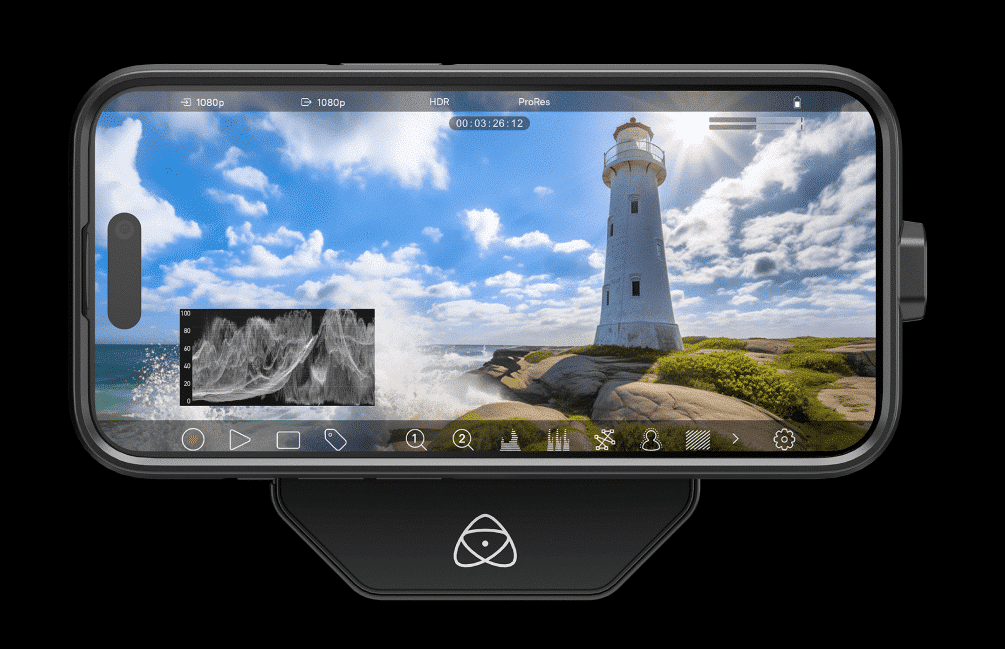

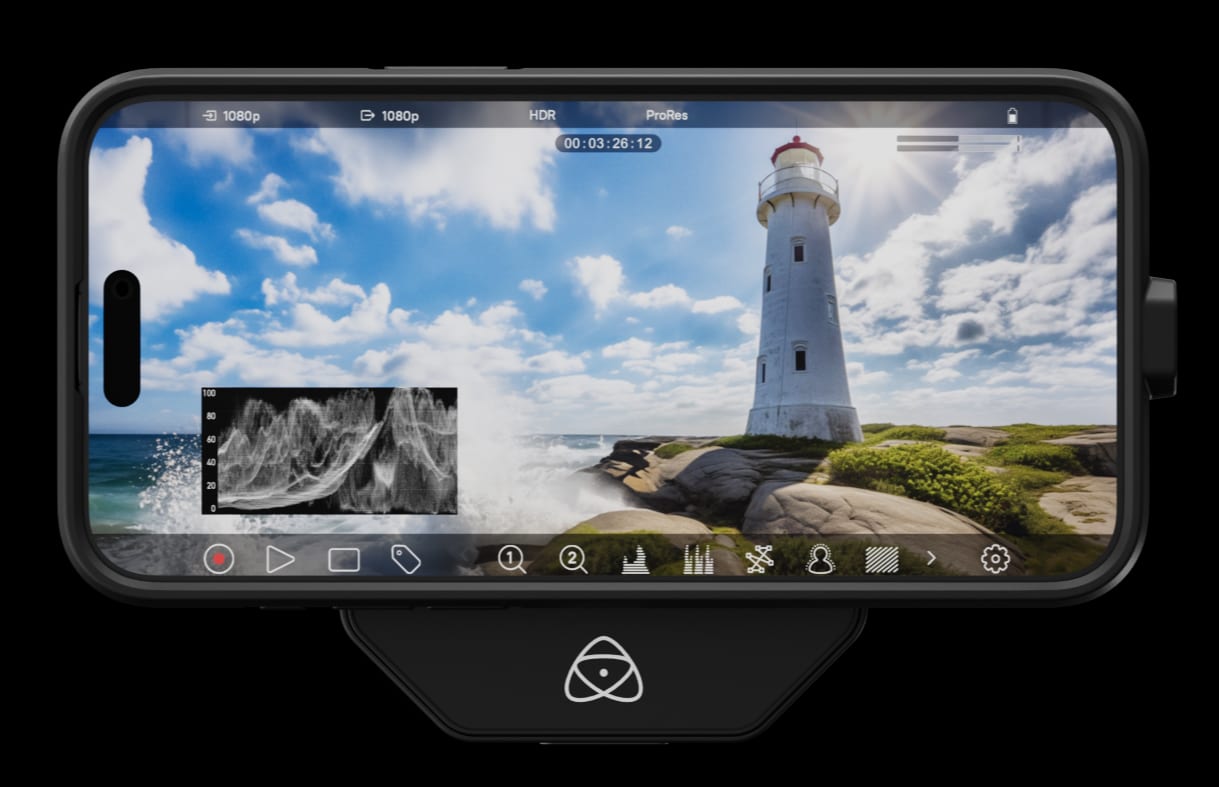

Supreme Apple display
HDR OLED
OLED is simply the best for HDR. With tiny, saturated, self-illuminating pixels, it produces a brilliant, accurate image. You can see your footage in all its glory!
1600nit
Deep blacks are only part of the HDR equation; you also need bright highlights. Apple’s XDR OLED screens pump out an impressive 1600nit peak highlight brightness, ideal for HDR and daylight viewing.
2,000,000:1 contrast ratio
LCD backlights kill contrast. Apple’s OLED screen doesn’t need one, and it shows, with the deepest possible blacks giving the display massive contrast.
460ppi
This is the highest-resolution screen that’s ever been seen on a Ninja, allowing for crisp video and sharp, accurate monitoring, especially when zoomed.
Ultra-secure
locking cables
How do you deal with non-locking cables like HDMI and USB C in mission-critical situations like a shoot? The answer is with a rugged and secure cable management system. Atomos’ new cables for Ninja Phone lock firmly into place so there’s no chance of unwanted disconnection. And of course, you can still use conventional, non-locking cables too.
Super light, super silent
The Ninja Phone is designed on AtomIC 5, the next generation of Atomos silicon that allows for low power, silent operation while encoding 10-bit ProRes and H.265 with exceptional USB-C connectivity. Drawing just 2.4W in full flight, the Ninja Phone combined with the iPhone 15 Pro or Pro Max is silent in operation while performing complex video processing tasks. The powerful IC allows for a super lightweight footprint that complements the iPhone 15 Pro and Pro max’s titanium construction. The Ninja Phone weighs in at 94 grams and when combined with the Pro Max and Atomos case is just 334 grams!
How do you shoot?
For Video Professionals
Great things happen when technology comes together. With Ninja Phone and the iPhone 15 Pro or Pro Max, you get a cutting-edge, connected professional filmmaking experience with a tiny footprint. You can go anywhere, shoot anything, and collaborate with colleagues around the world.

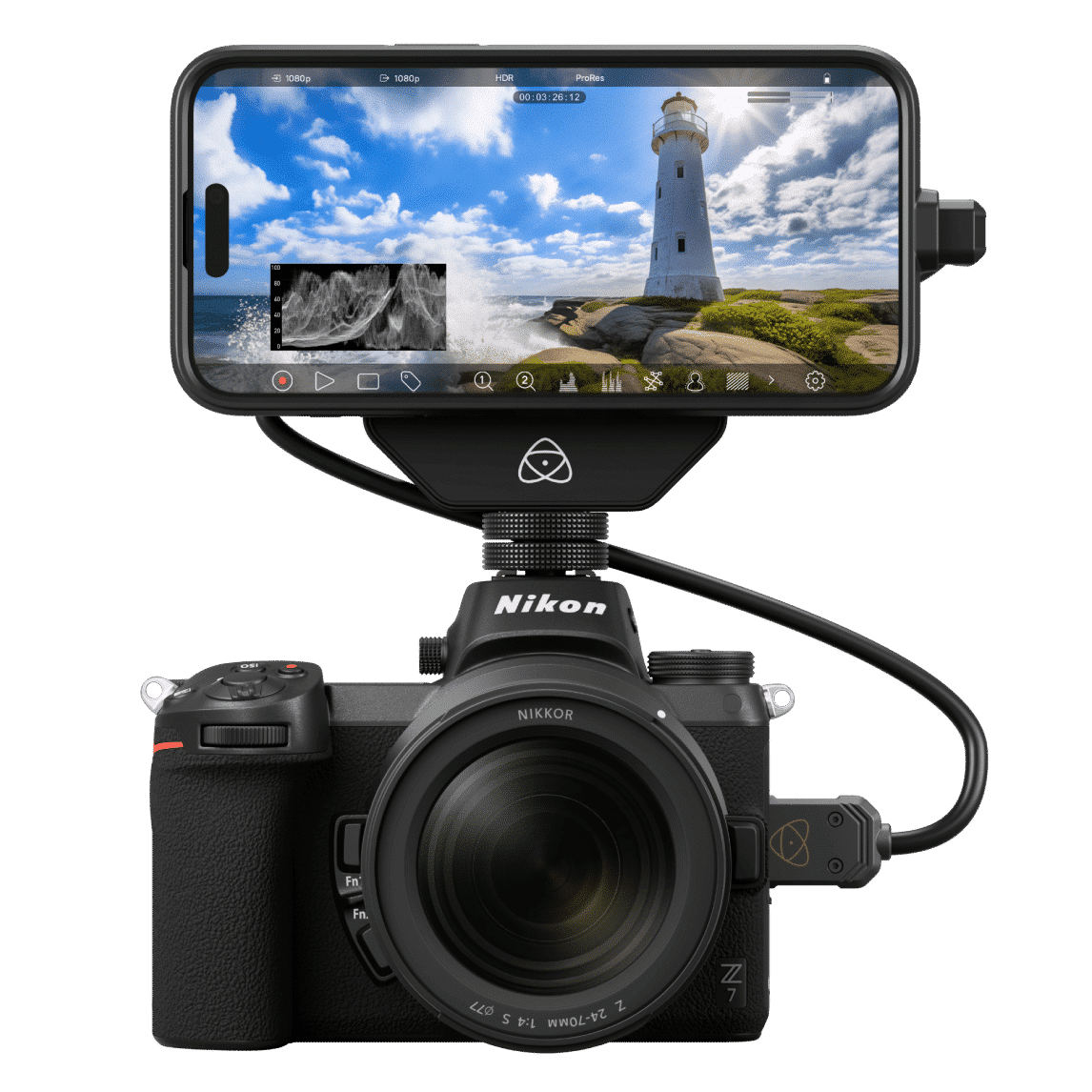

Connect any HDMI-equipped mirrorless or cinema camera to the technology powerhouse that is the iPhone 15 Pro or Pro Max
No compromise on quality: capture straight into industry-standard Apple ProRes from the sensor of your pro camera
Work collaboratively with colleagues using hyper-efficient Camera to Cloud workflows in 10-bit H.265 HDR!
Use the iPhone 15 Pro or Pro Max as the best-ever OLED viewfinder
Take perfect shots with Atomos’ best-in-class scopes and monitoring tools
For Content Creators
How do you shoot professional-looking video with maximum portability and the minimum amount of gear? Ninja Phone and its iPhone app are designed from the ground up to give you the mobility and versatility you need. Switch from landscape to portrait and back again seamlessly.
Connect professional HDMI compact, mirrorless or cinema cameras to the iPhone for professional quality video for social media broadcasts
Upload your footage to the cloud while shooting and start editing within seconds

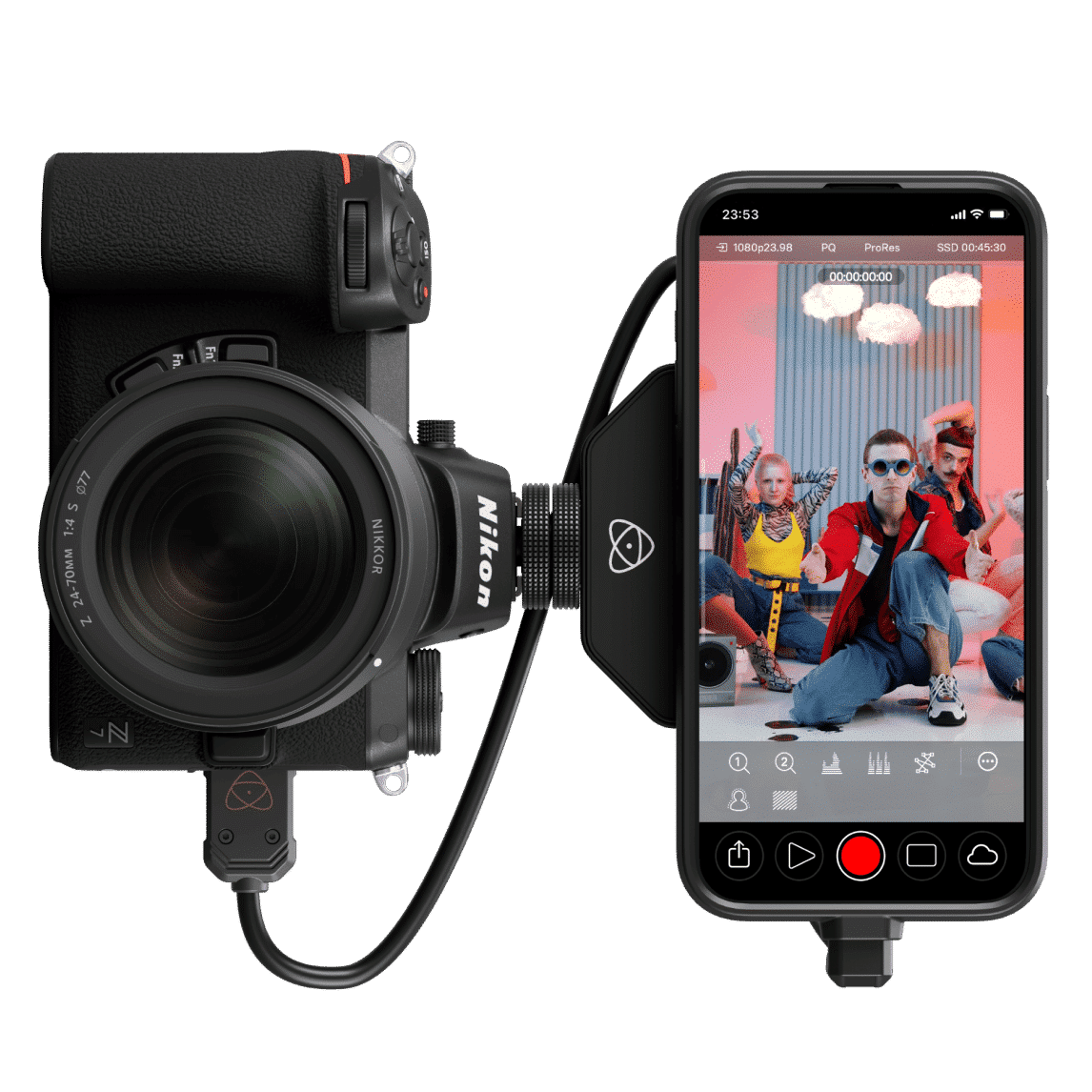

The Ninja Phone’s iPhone app understands 9:16 portrait mode and adjusts automatically to accommodate it
Stream directly to all major streaming platforms
Capture in high quality 10-bit ProRes and/or H.265 while streaming H.265!
Tech Specs
Video
Video Input Format
1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98fps
720p 60 / 59.94 / 50fps
Video CODEC
ProRes HQ / ProRes 422 / ProRes LT / ProRes Proxy / H.265 Main 10 / H.265 8b / H.264 8b
Video Input Port
HDMI-A
Video Output Port
USB 3.1 Gen1
ProRes HQ / ProRes 422 / ProRes LT / ProRes Proxy / H.265 Main 10 / H.265 8b / H.264 8b
1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98fps
720p 60 / 59.94 / 50fps
Audio
HDMI
2 Channel 48KHz PCM
USB-C Mic
Matches Microphone Sample Rate
Locks Audio to Video
Power
USB Power In
USB-C 5V 3A – Ninja Phone charges phone and accessories when attached
Accessory Port
USB-C 5V/1A + USB 3.0 Data
Battery Compatibility
NP-F550 / F750 / F970 – Ninja Phone charges phone and accessories when attached
2.4W (without charging iPhone)
4W (with iPhone 15 Pro)
Power Consumption
10W (with iPad Air Gen5)
Operating Environment Temperature
0℃~40℃
Dimensions
Height
98.2mm
Width
85.4mm
Depth
17.4mm
Weight
Ninja Phone
94g / 3.3 ounces
iPhone 15 Pro
187g / 6.6 ounces
iPhone 15 Pro Max
221g / 7.81 ounces
Atomos Phone Case
18g / 0.6 ounces
With case and iPhone 15 Pro Max
334g / 11.7g
Silicon
Chip
AtomIC 5
Mounting
Aluminium
1/4″/20 with guide pins
Screen
iPhone Monitor Specs
Super Retina XDR display
6.7‑inch (diagonal) all‑screen OLED display
2796‑by‑1290-pixel resolution at 460 ppi
Dynamic Island
Always-On display
ProMotion technology with adaptive refresh rates up to 120Hz
HDR display
True Tone
Wide color (P3)
Haptic Touch
2,000,000:1 contrast ratio (typical)
1000 nits max brightness (typical); 1600 nits peak brightness (HDR); 2000 nits peak brightness (outdoor)
Fingerprint-resistant oleophobic coating
Support for display of multiple languages and characters simultaneously
Screen Weather Proofing
iPhone Splash, Water, and Dust Resistant
Rated IP68 (maximum depth of 6 meters up to 30 minutes) under IEC standard 60529
iPhone Silicon
A17 Pro
New 6‑core CPU with 2 performance and 4 efficiency cores
New 6‑core GPU
New 16‑core Neural Engine
In iPhone Recording
Video recording w/Ninja Phone
Video formats recorded: HEVC, H.264, and ProRes
1080p HD video recording at 25 fps, 30 fps, or 60 fps
720p HD video recording at 30 fps
Cinematic mode
HDR video recording with Dolby Vision
ProRes video recording up to HDp60 Internal
Log video recording
Academy Color Encoding System
Cinematic video stabilization (4K, 1080p, and 720p)
Connectivity
Wireless
5G (sub‑6 GHz and mmWave) with 4×4 MIMO
Gigabit LTE with 4×4 MIMO and LAA
Wi‑Fi 6E (802.11ax) with 2×2 MIMO
Bluetooth 5.3
Location Data
Positional recorded information
Precision dual-frequency GPS
Digital compass
Wi-Fi
Cellular
iBeacon microlocation
